Description
Transceivers
Eliminate guesswork and ensure peace of mind during installation and deployment
with validated HPE Networking Instant On transceivers
R9D16A
HPE Networking Instant On Transceiver 1G SFP LC SX
For connections up to 500 meters
R9D17A
HPE Networking Instant On Transceiver 1G SFP RJ45
For copper Ethernet category 5e
connections up to 100 meters

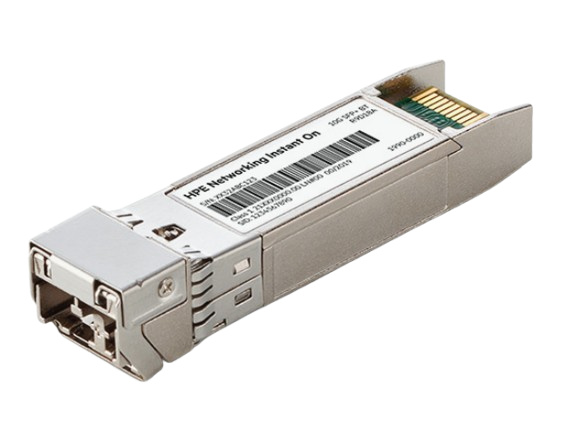

R9D18A
HPE Networking Instant On Transceiver 1OG SFP+ LC SR
For connections up to 300 meters

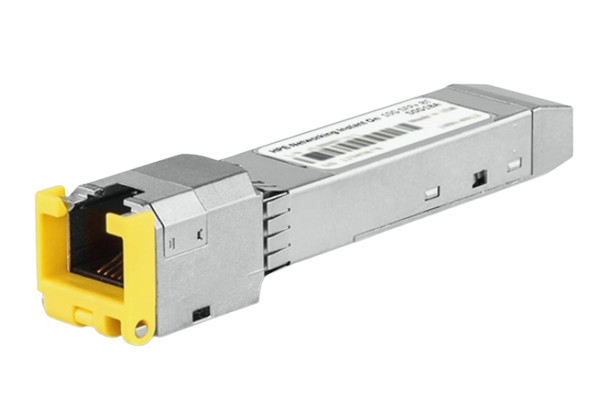

SOG18A
HPE Networking Instant On Transceiver 1OGBase-T SFP+ RJ45 30m Cat6A
For copper Ethernet connections
SOG20A
HPE Networking Instant On Transceiver 1G SFP LC LX
For single mode fiber connections up to 10 km
SOG21A
HPE Networking Instant On Transceiver 1G SFP+ LC LR
For single mode fiber connections up to 10 km

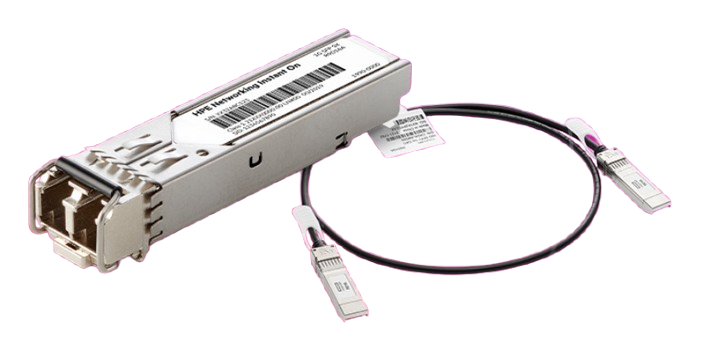

Direct Attach Copper Cables
Simplify network expansion with HPE Networking Instant On DAC cables,
compatible with all models of Instant On switches
R9D20A
HPE Networking Instant On DAC Cable IOG SFP+ to SFP+
For connections up to 3 meters
Sleeves
The optional HPE Networking Instant On flush mount sleeves for Instant On access points
ensures a neat and clean aesthetic on the mounting surface
R6P90A
HPE Networking Instant On Flush Mount Sleeve AP22
Compatible with Instant On AP22
Access Point
R9B36A
HPE Networking Instant On Flush Mount Sleeve AP25
Compatible with Instant On AP25
Access Point
Power Adapters
The HPE Networking Instant On power adapters are designed to power
Instant On access points when POE is not available
R9M78A
HPE Networking Instant On 12V Power Adapter
- Compatible with Instant On APII, AP12, AP15, AP21, AP22, AP25, and AP32 Access Points
- Includes US and EU Plugs
R3X86A
HPE Networking Instant On 48V/50W Power Adapter
- Compatible with Instant On APIID and AP22D Access Points
- Cord Not Included
POE Injectors
The HPE Networking Instant On POE injectors add power-over-Ethernet to existing non-PoE wired
R6P67A
HPE Networking Instant On POE Midspan Injector 802.3at 30W
- Compatible with Instant On AP25, AP27, and AP32 Access Points
- Cord Not Included
R6P68A
HPE Networking Instant On POE Midspan Injector 802.3af 15W
- Compatible with Instant On APII, AP12, AP15, AP21, AP22, and AP17 Access Points
- Cord Not Included
Power Cables
The HPE Networking Instant On power cord delivers power efficiently and consistently
to compatible Instant On products
